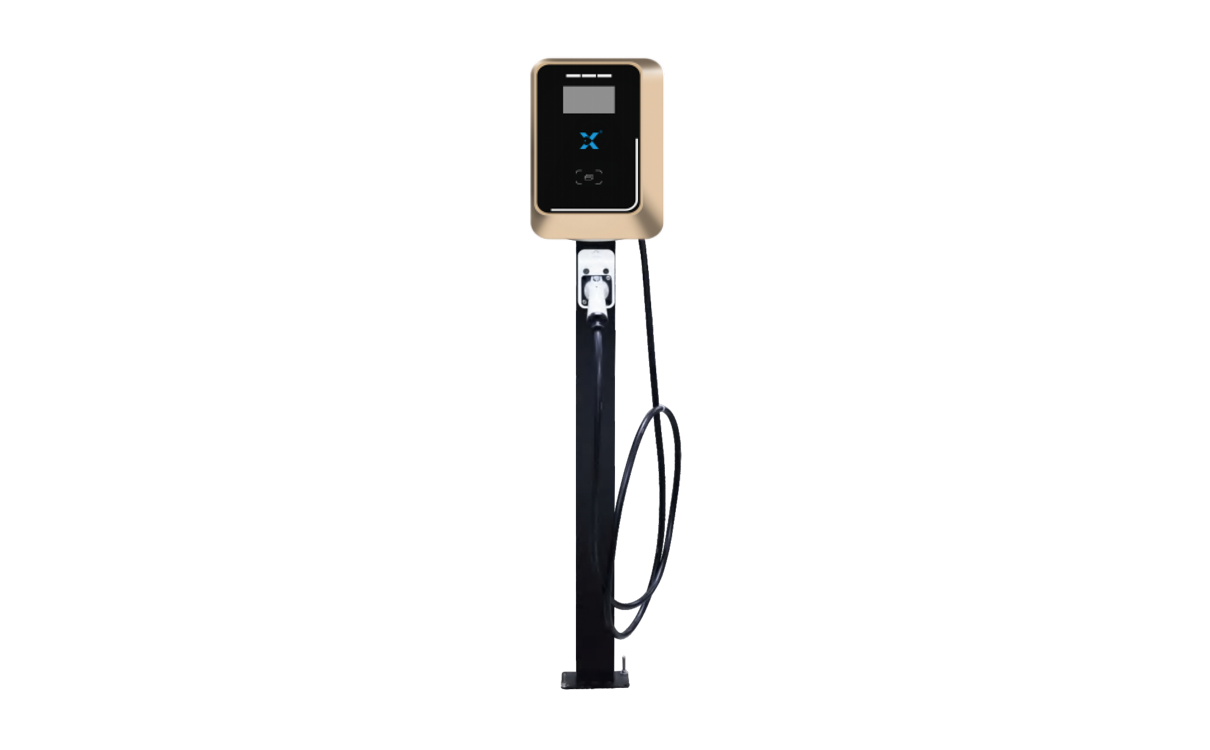

This product adopts a brand-new structural design, making the installation more convenient. It can be installed on a stand or mounted on the wall. Equipped with an intelligent protection system, it provides users with a safer charging experience and meets various operational requirements.
Product Features
Smart Charging:It supports multiple networking methods such as Ethernet, 4G and WIFI.
Powerful functions:It integrates functions such as control, billing, sensing, and information security.
Minimalist Operation and Maintenance:High protection level, no noise, convenient installation, and easy maintenance.
Cloud Management:Adopt online management. The basic functions of the platform are free of charge, and it supports free connection with mainstream third-party platforms.
Optional high-definition touch screen:It can display the charging data, making everything clear at a glance. It features stable performance, sensitive touch control, and is easy to get started with.
Technical Indicators
Product model | ZJXDT-AC-7KW |
Output power | 7KW |
Number of guns | Single spear |
Overall dimensions (width × height × depth) | 290×390×111.5mm |
Total machine weight | 4.7Kg (excluding packaging and columns) |
Optional selection | Swipe card / Screen |
frequency | 50HZ |
electricity meter | 2.0 - class multi - functional AC electric energy meter |
Protection level | IP54 |
Input voltage | 220Vac |
Rated current | 32A |
Elevation | ≤2000m |
Operating temperature | -30~55℃ |
Working humidity | 5~95% |
Installation method | Can be wall-mounted/column-mounted |
Charging interface standard | The national standard GB/T 20234-2015 requires |
Safety protection | Overcurrent protection, overvoltage protection, undervoltage protection, short - circuit protection, leakage protection |
Payment method | Support WeChat/Alipay/UnionPay |
